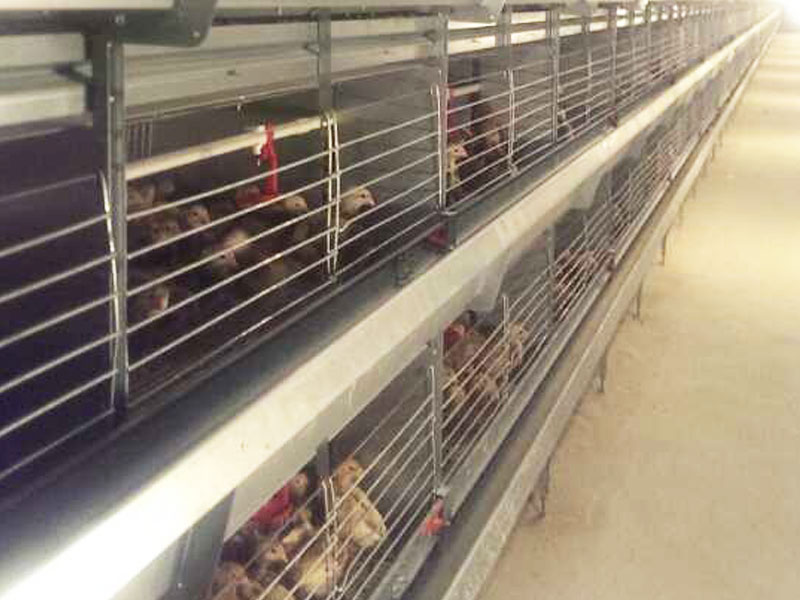

H Frame Pullet Battery Cage System

The mainframe construction is supported with U profile legs,which are placed each1,23m.And also one cage is one section.The cage construction gives the possibility because of its modular form to build up from 3 tiers to 8 tiers without grid floor(catwalk)


[Download 1.2MB]
1.THE BATTERY
The mainframe construction is supported with U profile legs,which are placed each1,23m.And also one cage is one section.The cage construction gives the possibility because of its modular form to build up from 3 tiers to 8 tiers without grid floor(catwalk) and until 150 m.Length.It is easy to understand from the name that the system is designed for maximum uniformity.


2.THE CAGES
The door for each cage placed in front of the middle.The middle door opens to inside of the cage,that provides easy management,time and labor saves to reach the animals in the 65*123 dimension of the cages.
The bottom wire mesh has the measures 19*19 mm(1’’*1’’)so it gives the possibility to put day old chicks on the bottom mesh without any extra plastic accessories.The cage designed for maximum comfort and high efficiency.

3.FEEDING SYSTEM
The Unifor gives the possibility by the special feeding plates to day old chicks to easy reach on the feed trough.Because of the perfect design on the foot plate and feeding plate there is no feed mostage during the feeding period.Chain feeding system and feed hopper system with special feed slides,to feed the chicks and pullets more homogenised and quick as possible several times a day.


4.DRINKING SYSTEM
In the cages the nipple line is near the center with one broiler nipple and three plastic coated.

5.MANURE REMOVAL SYSTEM
Robust construction of manure removal rollers,drive the Poly Propylene(PP)manure belts for collection of the manure under the cage.Because of the strong structure,system can work until 200 m.All galvanized material gives the possibility for long life.


6.Climate Control System
• the chicken house must be close which equipped with the Climate Control System.our “ ZHT ” Control System,so the feeding,drinking,egg collection and manure removal system all controlled by the electricity control panels.the ventilation fans,cooling pads,heating equipment(in winter season),sidewall ventilation windows also controlled together automatic.
